Zinc Plated DIN251 8.8 Hexagon Socket Flange Head Allen Bolt

Zinc Plated DIN251 8.8 Hexagon Socket Flange Head Machine Bolt

Product Description

Standard:DIN251

DIN 251 hexagon socket flange head machine screws are German DIN standard specialized fasteners engineered for industrial mechanical fastening, renowned for their integrated anti-loosening structure, high connection stability and standardized dimensional design. As a mainstream choice for medium and high-load fastening scenarios, this type of machine screw features a one-piece hexagon socket drive and flange head structure, eliminating the need for additional washers in assembly. Paired with the industry-common 8.8 grade mechanical performance and zinc-plated anti-corrosion treatment, DIN 251 screws are widely adopted in various industrial assembly fields with strict requirements for connection firmness and installation efficiency.

Core Features:

• Integrated structure saves assembly time: The flange head replaces the traditional flat washer and spring washer combination, reducing the number of assembly parts and improving fastening efficiency;
• Strong anti-loosening performance: The flange surface is designed with anti-slip serrations (optional for standard models), which can effectively prevent the screw from loosening due to mechanical vibration, ensuring long-term connection stability;
• Wide compatibility: Standardized DIN 251 dimensions cover mainstream metric thread specifications (M3-M24), adapting to the fastening needs of different industrial workpieces and equipment;
• Easy operation: The hexagon socket drive is compatible with universal standard hexagon socket wrenches, with no special tool requirements, and is suitable for narrow and confined installation spaces.

Application Scenarios:

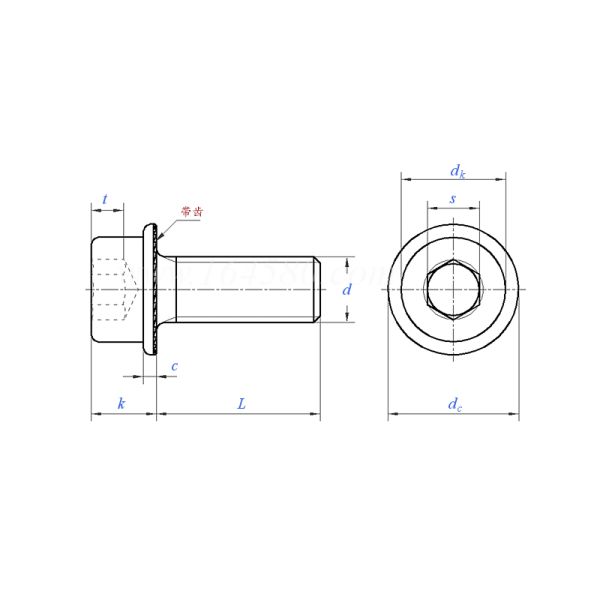

Technical Specifications

d		M3	M4	M5	M6	M8	M10
P		0.5	0.7	0.8	1	1.25	1.5
dk	min	5.2	6.78	7.72	9.7	12.7	15.7
	max	5.5	7	8	10	13	16
k	min	2.75	3.82	4.82	5.7	7.7	9.7
	max	3	4	5	6	8	10
dc	min	6.7	8.8	10.7	12.3	15.7	19.7
	max	7	9	11	12.6	16	20
c	min	0.8	1	1	1.3	1.8	2
	max	1	1.2	1.2	1.5	2	2.2
s		2.5	3	4	5	6	8
t	min	1.3	2	2.5	3	4	5
Teeth		18	18	20	24	24	30

Packaging

Carton Packaging	Outer Cartonbox Packaging	Pallet Packaging
Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.	The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.	The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.

Zinc plated DIN251 Allen bolt

8.8 grade flange head bolt

Hexagon socket Allen head bolt
